aston martin db9 (2013) power conversion parts diagram

03-1100-E1 - Power Conversion

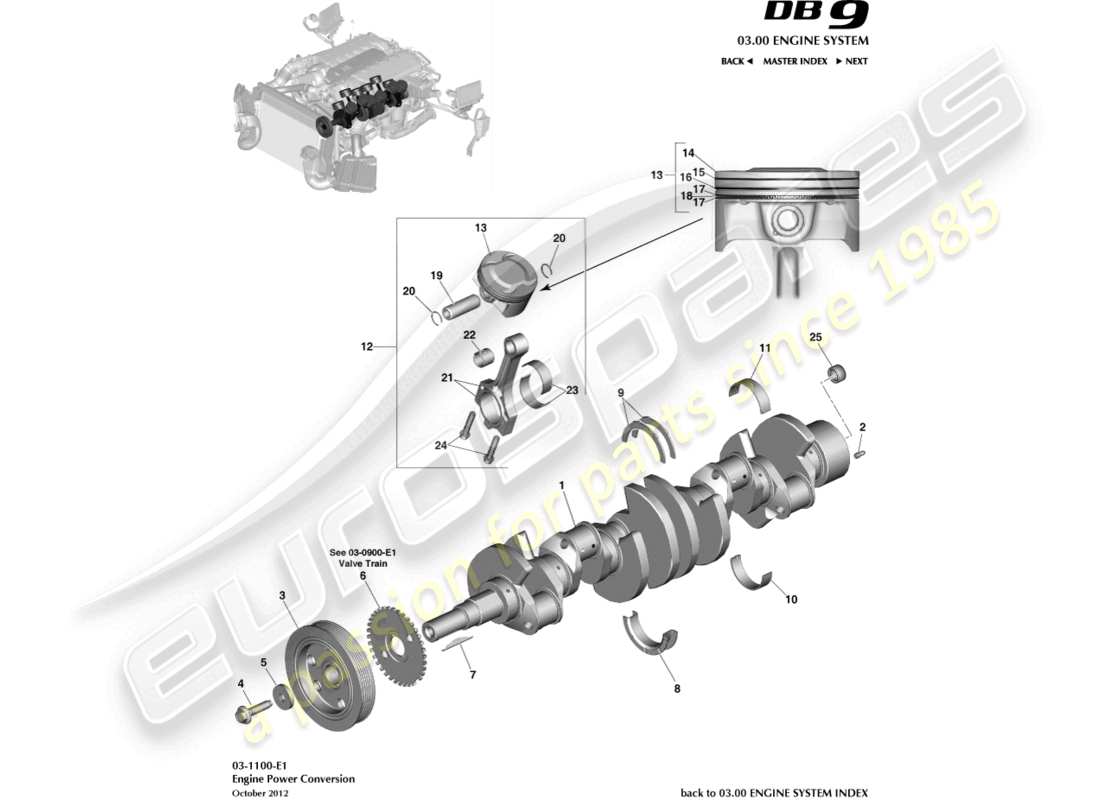

Aston Martin DB9 (2013) Power Conversion Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 1
                                                MPN: 4G43-02-10229
                                                crankshaft
                                                Includes Item 2
                                                from £4,140.25
                                                from £4,140.25
                                                CRANKSHAFT ASSEMBLY, (INCLUDES DOWEL, ITEM 2) Genuine Aston Martin - New (to order)
                                                # 2
                                                MPN: 1R12-41-10177
                                                DOWEL PIN
                                                from £6.51
                                                from £6.51
                                                DOWEL PIN Genuine Aston Martin - New (to order)
                                                # 3
                                                MPN: CD33-6316-AA
                                                DAMPER ASSY, CRANKSHAFT
                                                from £434.87
                                                from £434.87
                                                DAMPER ASSEMBLY, CRANKSHAFT Genuine Aston Martin - New (to order)
                                                # 4
                                                MPN: 4G43-02-10822
                                                BOLT, M12 X 48
                                                from £9.30
                                                from £9.30
                                                BOLT, M12X48 Genuine Aston Martin - New (to order)
                                                # 5
                                                MPN: 4G43-02-10821
                                                WASHER, 13.5X39.5X7.35
                                                from £9.63
                                                from £9.63
                                                WSHR-13.5X39.5X7.35 Genuine Aston Martin - New (to order)
                                                # 6
                                                MPN: 1S7E-12A227-AC
                                                RING, IGNITION PULSATOR CRANKSHAFT SENSOR
                                                RING, IGNITION PULSATOR CRANKSHAFT SENSOR Genuine Aston Martin - New (to order)
                                                # 7
                                                MPN: 02-85008
                                                KEY, CRANKSHAFT, 4.76X53.5
                                                from £18.20
                                                from £18.20
                                                KEY, CRANKSHAFT, 4.76X53.5 Genuine Aston Martin - New (to order)
                                                # 8
                                                MPN: 4R3E-6A339-BA
                                                WASHER, CRANKSHAFT MAIN THRUST LOWER
                                                from £34.76
                                                from £34.76
                                                WASHER, THRUST, CRANKSHAFT, LOWER Genuine Aston Martin - New (to order)
                                                # 9
                                                MPN: BR3E-6A341-BA
                                                WASHER, CRANKSHAFT MAIN THRUST UPPER
                                                from £2.55
                                                from £2.55
                                                WASHER, CRANKSHAFT MAIN THRUST UPPER Genuine Aston Martin - New (to order)
                                                # 10
                                                MPN: 4R3E-6A338-AA
                                                BEARING, CRANKSHAFT MAIN LOWER, GRADE 1
                                                Supersession
                                                Supersession
                                                Genuine Aston Martin (no longer available to order)
                                                # 10
                                                MPN: 4R3E-6A338-BA
                                                BEARING, CRANKSHAFT MAIN LOWER, GRADE 2
                                                from £11.81
                                                from £11.81
                                                BRG-CRK MN LWR(.012) Genuine Aston Martin - New (to order)
                                                # 10
                                                MPN: 4R3E-6A338-CA
                                                BEARING, CRANKSHAFT MAIN LOWER, GRADE 3
                                                from £16.97
                                                from £16.97
                                                BRG-CRK MN LWR(.014) Genuine Aston Martin - New (to order)
                                                # 11
                                                MPN: 4R3E-6333-AA
                                                BEARING, CRANKSHAFT MAIN UPPER, GRADE 1
                                                from £7.04
                                                from £7.04
                                                BEARING-CRANK MN UPR Genuine Aston Martin - New (to order)
                                                # 11
                                                MPN: 4R3E-6333-BA
                                                BEARING, CRANKSHAFT MAIN UPPER, GRADE 2
                                                from £9.97
                                                from £9.97
                                                BEARING-CRANK MN UPR Genuine Aston Martin - New (to order)
                                                # 11
                                                MPN: 4R3E-6333-CA
                                                BEARING, CRANKSHAFT MAIN UPPER, GRADE 3
                                                from £16.97
                                                from £16.97
                                                BEARING-CRANK MN UPR Genuine Aston Martin - New (to order)
                                                # 12
                                                MPN: CD33-6100-AA
                                                PISTON & CONNECTING ROD ASSY, GRADE 1
                                                from £187.16
                                                from £187.16
                                                PISTON & CONNECTING ROD ASSEMBLY, GRADE SIZE 1 Genuine Aston Martin - New (to order)
                                                # 13
                                                MPN: CD33-6K109-AA
                                                PISTON AND RING ASSY, GRADE 1
                                                from £527.33
                                                from £527.33
                                                PISTON AND RING ASSEMBLY, GRADE 1 Genuine Aston Martin - New (to order)
                                                # 13
                                                MPN: CD33-6K109-BA
                                                PISTON AND RING ASSY, GRADE 2
                                                from £527.33
                                                from £527.33
                                                PISTON AND RING ASSEMBLY, GRADE 2 Genuine Aston Martin - New (to order)
                                                # 13
                                                MPN: CD33-6K109-CA
                                                PISTON AND RING ASSY, GRADE 3
                                                from £213.27
                                                from £213.27
                                                PISTON AND RING ASSEMBLY, GRADE 3 Genuine Aston Martin - New (to order)
                                                # 14
                                                MPN: CD33-6110-AA
                                                PISTON, GRADE SIZE 1
                                                PISTON, GRADE SIZE 1 Genuine Aston Martin - New (to order)
                                                # 14
                                                MPN: CD33-6110-BA
                                                PISTON, GRADE SIZE 2
                                                PISTON, GRADE SIZE 2 Genuine Aston Martin - New (to order)
                                                # 14
                                                MPN: CD33-6110-CA
                                                PISTON, GRADE SIZE 3
                                                PISTON, GRADE SIZE 3 Genuine Aston Martin - New (to order)
                                                # 15
                                                MPN: 1R12-02-10060
                                                RING, PISTON COMPRESSION UPPER
                                                from £25.56
                                                from £25.56
                                                P/RING-COMPR UPPER Genuine Aston Martin - New (to order)
                                                # 16
                                                MPN: 02-85013
                                                RING, PISTON COMPRESSION LOWER
                                                from £12.72
                                                from £12.72
                                                P/RING-COMPR.LOWER Genuine Aston Martin - New (to order)
                                                # 17
                                                MPN: 02-85014
                                                SEGMENT, PISTON OIL CONTROL RING
                                                from £7.11
                                                from £7.11
                                                SEGMENT, PISTON RING, OIL CONTROL Genuine Aston Martin - New (to order)
                                                # 18
                                                MPN: 02-85015
                                                SPACER, PISTON OIL CONTROL SEGMENT
                                                from £6.51
                                                from £6.51
                                                SPACER-OIL CONTROL Genuine Aston Martin - New (to order)
                                                # 19
                                                MPN: 4G43-02-10955
                                                PIN, PISTON
                                                from £17.28
                                                from £17.28
                                                PIN, PISTON Genuine Aston Martin - New (to order)
                                                # 20
                                                MPN: 1R12-02-10448
                                                RETAINER, PISTON PIN
                                                from £1.68
                                                from £1.68
                                                RETAINER, PISTON PIN Genuine Aston Martin - New (to order)
                                                # 21
                                                MPN: 9G43-02-11092
                                                CONNECTING ROD ASSY
                                                Supersession
                                                Supersession
                                                Genuine Aston Martin (no longer available to order)
                                                # 22
                                                MPN: 4G43-02-10968
                                                BUSHING, PISTON PIN
                                                from £3.31
                                                from £3.31
                                                BUSHING, PISTON PIN Genuine Aston Martin - New (to order)
                                                # 23
                                                MPN: 6E5E-6211-AB
                                                BEARING, CONNECTING ROD
                                                from £15.16
                                                from £15.16
                                                BEARING, CONNECTING ROD Genuine Aston Martin - New (to order)
                                                # 23
                                                MPN: 6E5E-6211-BB
                                                BEARING, CONNECTING ROD, 0.25
                                                0.25mm undersized
                                                from £12.61
                                                from £12.61
                                                BEARING, CONNECTING ROD, 0.25 Genuine Aston Martin - New (to order)
                                                # 24
                                                MPN: 02-85018
                                                BOLT, CONNECTING ROD
                                                from £11.18
                                                from £11.18
                                                BOLT, CONNECTING ROD Genuine Aston Martin - New (to order)
                                                # 25
                                                MPN: 1R12-02-10061
                                                BEARING ASSEMBLY, PILOT
                                                from £20.13
                                                from £20.13
                                                BEARING, PILOT Genuine Aston Martin - New In stock
