aston martin db9 (2013) restraint electronics parts diagram

01-2004-01 - Restraint Electronics

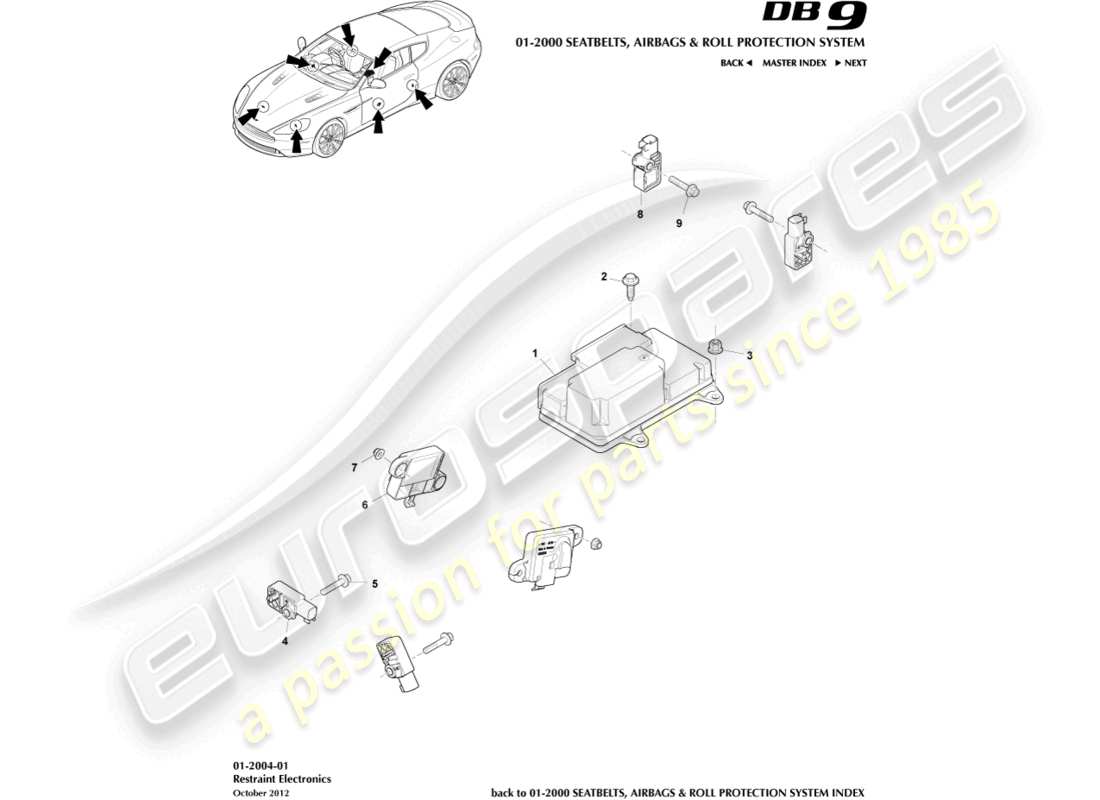

Aston Martin DB9 (2013) Restraint Electronics Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: AD33-37-10112
                MODULE, SAFETY RESTRAINT SYSTEM
                Coupe, P14
                from £321.12
                from £321.12
                RCM P14 TYPE Genuine Aston Martin - New (to order)
                # 1
                MPN: CG43-37-11330
                MODULE, SAFETY RESTRAINT SYSTEM
                Volante, P15
                from £420.25
                from £420.25
                MODULE-RESTRAINTS Genuine Aston Martin - New (to order)
                # 2
                MPN: 702839-PK
                SCREW & WASHER, M6X20
                from £3.12
                from £3.12
                SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
                # 3
                MPN: 702840
                NUT & WASHER, M6
                Pack of 10
                from £0.47
                from £0.47
                NUT/WASHER ASSEMBLY M6 Genuine Aston Martin - New (to order)
                # 4
                MPN: 4G43-37-10932
                SENSOR, OCCUPANT RESTRAINT SYSTEM, FRONT
                from £32.90
                from £32.90
                SENSOR-ORS UPR FRT Genuine Aston Martin - New (to order)
                # 5
                MPN: 703199
                BOLT, M6 X 30 HEX FLANGE
                from £0.47
                from £0.47
                BOLT M6X30 HEX FLG Genuine Aston Martin - New (to order)
                # 6
                MPN: 6G43-37-10240
                SENSOR, RESTRAINT SYSTEM SIDE IMPACT PRESSURE SENSOR
                from £23.94
                from £23.94
                ARS SD IMP SENSOR Genuine Aston Martin - New (to order)
                ARS SD IMP SENSOR Genuine Aston Martin - Used In stock
                # 8
                MPN: 4G43-37-10931
                SENSOR, OCCUPANT RESTRAINT SYSTEM, SIDE
                from £32.11
                from £32.11
                SENSOR-OCC RESTRAINT Genuine Aston Martin - New (to order)
                # 9
                MPN: 703199
                BOLT, M6 X 30 HEX FLANGE
                from £0.47
                from £0.47
                BOLT M6X30 HEX FLG Genuine Aston Martin - New (to order)
