120102 - Air Distribution Components

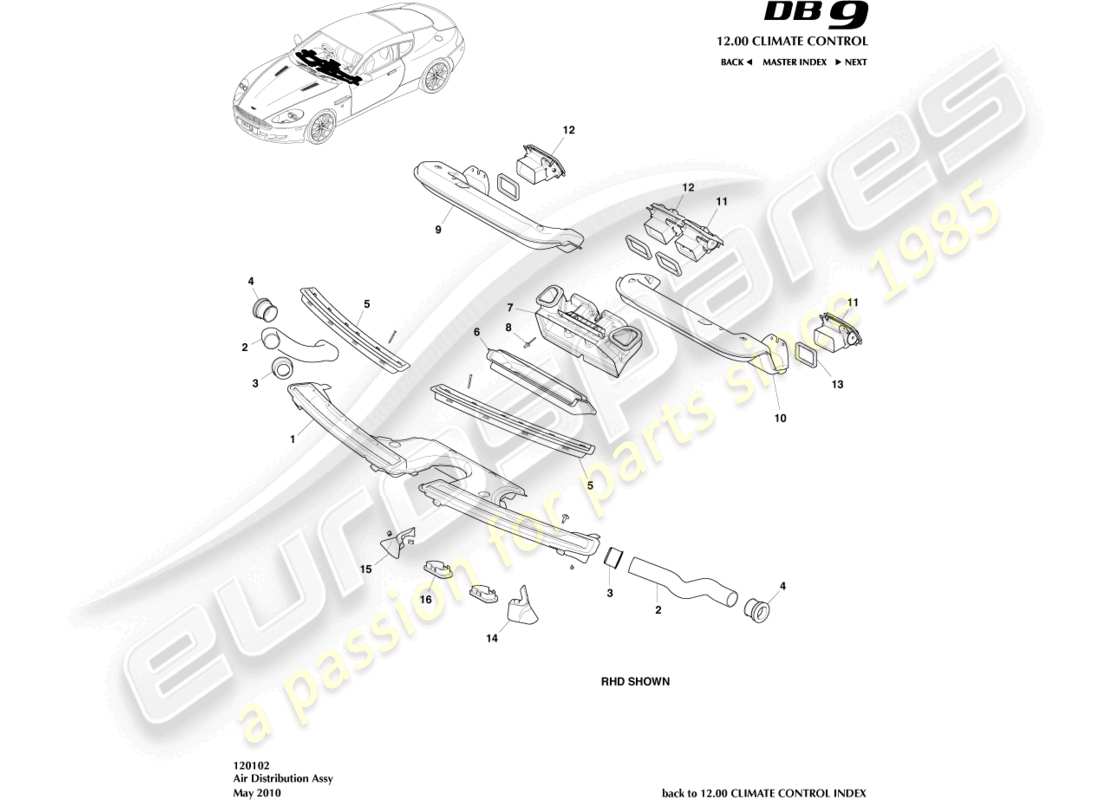

Aston Martin DB9 (2007) Air Distribution Components Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 6G33-04432-BD
                  DUCT ASSEMBLY, WINDSHIELD DEFLECTOR, RHD
                  from £84.61
                  from £84.61
                  DCT ASSY Genuine Aston Martin - New (to order)
                  # 1
                  MPN: 6G33-04432-AD
                  DUCT ASSEMBLY, WINDSHIELD DEFLECTOR, LHD
                  from £84.61
                  from £84.61
                  DCT ASSY Genuine Aston Martin - New (to order)
                  # -
                  MPN: 701433
                  SCREW AND WASHER, M6 X 18
                  08MY From (V) A09110
                  SCREW/WASHER, M6 X 18- WHEELARCH TO UNDERBODY Genuine Aston Martin - New (to order)
                  # -
                  MPN: 701157
                  SCREW, 4.2 X 16 LARGE WASHER HEAD
                  08MY From (V) A09110
                  from £0.47
                  from £0.47
                  SCREW, 4.2X16, TAP Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 4G43-19E658-AC
                  HOSE, A/C SIDE WINDOW DEMISTER
                  from £18.40
                  from £18.40
                  HOSE-A/C WDO DMSTR Genuine Aston Martin - New (to order)
                  HOSE-A/C WDO DMSTR Genuine Aston Martin - Used In stock
                  # 3
                  MPN: 4G43-19E680-AD
                  CONNECTOR, A/C DEMISTER HOSE
                  from £5.54
                  from £5.54
                  CONNECTOR, DEMIST HOSE Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 4G43-C046B80-AC
                  SEAL, PANEL OPENING
                  from £5.54
                  from £5.54
                  SE I/PNL DEF OPG GRL Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 4G43-18C491-AJ
                  GRILLE, WINDOW DEFROST
                  from £28.64
                  from £28.64
                  GRILLE, WINDOW DEFROST Genuine Aston Martin - New (to order)
                  GRILLE, WINDOW DEFROST Genuine Aston Martin - Used In stock
                  # -
                  MPN: 6G33-79231-AA
                  SCREW, M3.5 X 38, POZI
                  Window Defrost Grille
                  SCREW, M3.5 X 38, POZI Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 4G43-18633-BC
                  DUCT ASSEMBLY, HEATER OUTLET
                  from £110.46
                  from £110.46
                  DUCT ASSEMBLY, HEATER OUTLET Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 4G43-18D404-BD
                  DUCT ASSEMBLY, HEATER AIR DIST, CENTRE, RHD
                  07MY
                  from £332.52
                  from £332.52
                  DUCT ASSEMBLY, HEATER AIR DIST, CENTRE, RHD Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 8G43-18D404-BB
                  DUCT ASSEMBLY, HEATER AIR DIST, CENTRE, RHD
                  08MY From (V) A09110
                  from £49.90
                  from £49.90
                  DCT ASY-HTR AIR DSTR Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 4G43-18D404-AD
                  DUCT ASSEMBLY, HEATER AIR DIST, CENTRE, LHD
                  from £332.52
                  from £332.52
                  DUCT ASSEMBLY, HEATER AIR DIST, CENTRE, LHD Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 8G43-18D404-AC
                  DUCT ASSEMBLY, HEATER AIR DIST, CENTRE, LHD
                  08MY From (V) A09110
                  from £48.15
                  from £48.15
                  DCT ASY-HTR AIR DSTR Genuine Aston Martin - New (to order)
                  # 8
                  MPN: 702943
                  RIVET, 3.2, INSTRUMENT PANEL DUCT
                  08MY From (V) A09110
                  from £0.47
                  from £0.47
                  RIVET-3.2X6.5 BLACK Genuine Aston Martin - New (to order)
                  # 9
                  MPN: 6G33-19C735-AB
                  DUCT, RH, INSTRUMENT PANEL
                  07MY
                  from £23.17
                  from £23.17
                  DUCT, RH, INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                  # 9
                  MPN: 8G43-19C804-AC
                  DUCT, RH, INSTRUMENT PANEL
                  08MY From (V) A09110
                  DUCT, RH, INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 6G33-19C850-AB
                  DUCT, LH, INSTRUMENT PANEL
                  07MY
                  from £33.11
                  from £33.11
                  DUCT, LH, INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 8G43-19C805-AC
                  DUCT, LH, INSTRUMENT PANEL
                  08MY From (V) A09110
                  from £42.44
                  from £42.44
                  DCT ASY AC I/PNL CTR Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 4G43-046B31-BB
                  VENTILATOR OUTLET, FACIA, LS
                  Graphite with White Symbols
                  from £46.83
                  from £46.83
                  This part replaces part number 4G43-046B31-AB which we have in stock - and 2 more. Click to view details
                  RGSTR ASY I/PNL A/C Genuine Aston Martin - New (to order)
                  RGSTR ASY I/PNL A/C Genuine Aston Martin - Used In stock
                  # 11
                  MPN: 8D33-046B31-BB
                  VENTILATOR OUTLET, FACIA, LS
                  Iridium Silver with White Symbols
                  from £86.95
                  from £86.95
                  RGSTR ASY I/PNL A/C Genuine Aston Martin - New (to order)
                  # 12
                  MPN: 4G43-046B30-BB
                  VENTILATOR OUTLET, FACIA, RS
                  Graphite with White Symbols
                  from £46.83
                  from £46.83
                  RGSTR ASY I/PNL A/C Genuine Aston Martin - New (to order)
                  RGSTR ASY I/PNL A/C Genuine Aston Martin - Used In stock
                  # 12
                  MPN: 8D33-046B30-BB
                  VENTILATOR OUTLET, FACIA, RS
                  Iridium Silver with White Symbols
                  from £86.95
                  from £86.95
                  RGSTR ASY I/PNL A/C Genuine Aston Martin - New (to order)
                  # -
                  MPN: 703068
                  SCREW, 4.2 X 9 PAN CLLR INT LOB TAP
                  08MY From (V) A09110
                  from £0.47
                  from £0.47
                  SCREW 4.2X9 Genuine Aston Martin - New (to order)
                  # -
                  MPN: 701447
                  SCREW, M4 X 12
                  08MY From (V) A09110
                  from £0.47
                  from £0.47
                  SCREW 4X12 PAN Genuine Aston Martin - New (to order)
                  # 13
                  MPN: 4G43-18D404-CA
                  FOAM SEAL
                  from £1.44
                  from £1.44
                  FOAM SEAL - AIR DIST Genuine Aston Martin - New (to order)
                  # 14
                  MPN: 8G43-014K96-BB
                  DUCT, ASSEMBLY VENT AIR LOWER, RS, RHD
                  08MY From (V) A09110
                  from £20.63
                  from £20.63
                  DUCT, ASSEMBLY VENT AIR LOWER, RS, RHD Genuine Aston Martin - New (to order)
                  # 14
                  MPN: 9D33-014K96-AA
                  DUCT, ASSEMBLY VENT AIR LOWER, RS, RHD
                  09MY
                  from £4.56
                  from £4.56
                  DCT ASY VEN AUR LWR Genuine Aston Martin - New (to order)
                  # 14
                  MPN: 8G43-014K96-AB
                  DUCT, ASSEMBLY VENT AIR LOWER, RS, LHD
                  08MY From (V) A09110
                  from £23.45
                  from £23.45
                  DCT ASY VEN AUR LWR Genuine Aston Martin - New (to order)
                  # 15
                  MPN: 8G43-014K97-BB
                  DUCT, ASSEMBLY VENT AIR LOWER, LS, RHD
                  08MY From (V) A09110
                  from £23.45
                  from £23.45
                  DCT ASY VEN AIR LWR Genuine Aston Martin - New (to order)
                  # 15
                  MPN: 8G43-014K97-AB
                  DUCT, ASSEMBLY VENT AIR LOWER, LS LHD
                  08MY From (V) A09110
                  from £21.00
                  from £21.00
                  DUCT, ASSEMBLY VENT AIR LOWER, LS LHD Genuine Aston Martin - New (to order)
                  # 15
                  MPN: 9D33-014K97-AA
                  DUCT, ASSEMBLY VENT AIR LOWER, LS, LHD
                  09MY
                  from £4.56
                  from £4.56
                  DCT ASY VEN AIR LWR Genuine Aston Martin - New (to order)
                  # 16
                  MPN: 7G43-014K00-AA
                  PLUG ASSEMBLY, FOOT DUCT OUTLET, LHD
                  from £7.86
                  from £7.86
                  ASY PLUG OLET F/DUCT Genuine Aston Martin - New (to order)
                  # -
                  MPN: 7G43-370807-AA
                  BRACKET ASSEMBLY TPM
                  07MY
                  BRACKET ASSEMBLY TPM Genuine Aston Martin - New (to order)
                  # -
                  MPN: 7G43-370807-AB
                  BRACKET ASSEMBLY TPM
                  08MY From (V) A09110
                  from £47.65
                  from £47.65
                  BRACKET ASSEMBLY TPM Genuine Aston Martin - New (to order)
