aston martin db9 (2006) boot harness parts diagram

180103-D3 - Boot Harness

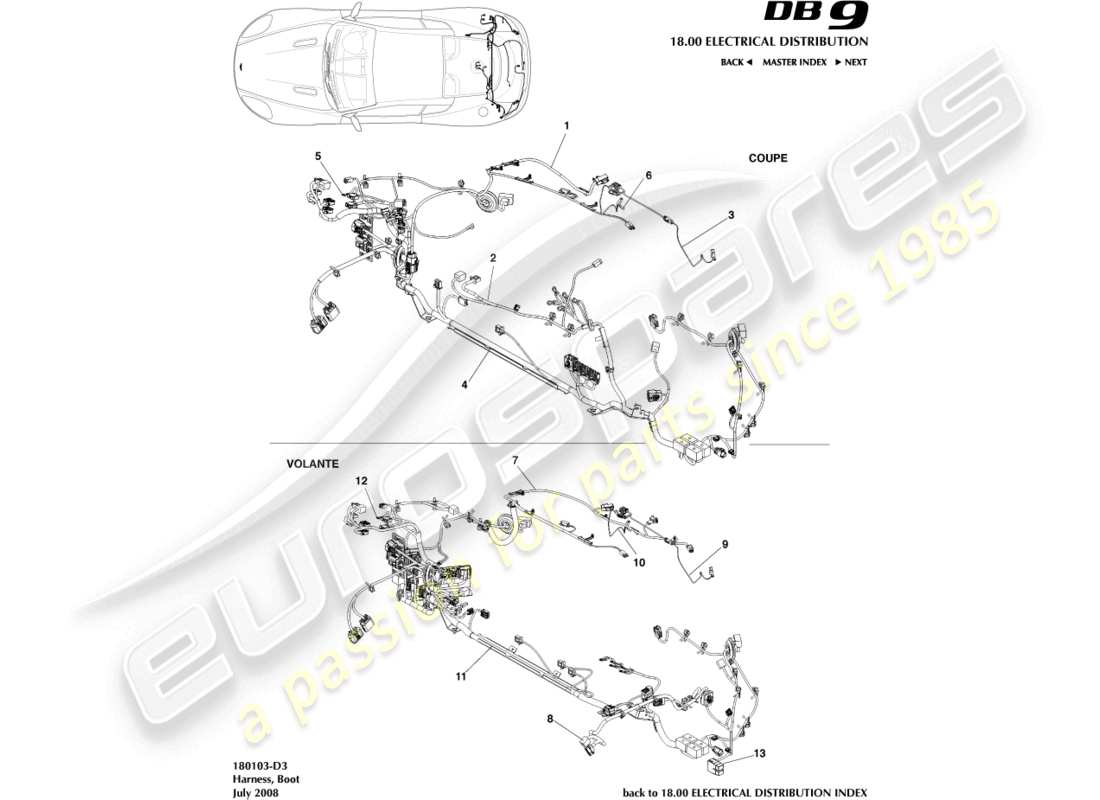

Aston Martin DB9 (2006) Boot Harness Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 4G43-14A227-CC

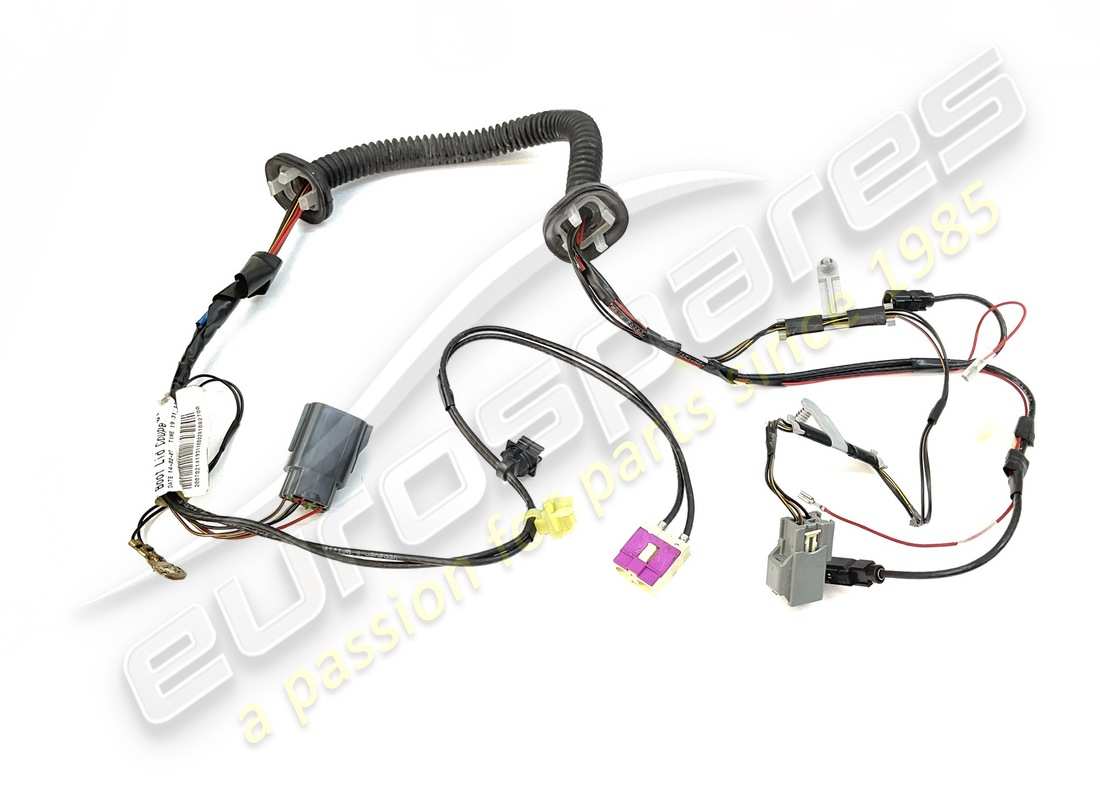

                    HARNESS ASSY, BOOT LID, COUPE, AM/FM & TMC
                    from £97.23
                    from £97.23
                    HARNESS ASSEMBLY, BOOT LID, COUPE, AM/FM & TMC Genuine Aston Martin - New (to order)
                    # 1
                    MPN: 7G43-14A227-CB
                    HARNESS ASSY, BOOT LID, COUPE, AM,FM & TMC
                    07MY
                    from £83.95
                    from £83.95
                    HARNESS ASSEMBLY, BOOT LID, COUPE, AM,FM & TMC Genuine Aston Martin - New (to order)
                    # 1
                    MPN: 4G43-14A227-AE
                    HARNESS ASSY, BOOT LID, COUPE, AM/FM
                    from £82.87
                    from £82.87
                    HARNESS ASSEMBLY, BOOT LID, COUPE, AM/FM Genuine Aston Martin - New (to order)
                    # 1
                    MPN: 7G43-14A227-AB
                    HARNESS ASSY, BOOT LID, COUPE, AM/FM
                    07MY
                    HARNESS ASSEMBLY, BOOT LID, COUPE, AM/FM Genuine Aston Martin - New (to order)
                    HARNESS ASSEMBLY, BOOT LID, COUPE, AM/FM Genuine Aston Martin - Used In stock
                    # 1
                    MPN: 8G43-14A227-AB
                    HARNESS ASSY, BOOT LID, COUPE,
                    08MY From (V) A09110
                    from £85.66
                    from £85.66
                    HARNESS ASSEMBLY, BOOT LID, COUPE, Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 4G43-18C951-HB
                    HARNESS ASSY, MOST BOOT, COUPE
                    from £12.16
                    from £12.16
                    MOST SERVICE LOOP Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 4G43-14A227-GA
                    HARNESS ASSY, FEDERAL, NUMBER PLATE STUB, COUPE
                    from £31.40
                    from £31.40
                    HRN FED NUM PLT LMP Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 4G43-14405-AE
                    HARNESS ASSY, BOOT, COUPE
                    from £1,778.47
                    from £1,778.47
                    HARNESS ASSEMBLY, BOOT, COUPE Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 4G43-14A280-FC
                    HARNESS ASSY, EARTH BRAID ANTENNA MODUAL, COUPE
                    from £13.82
                    from £13.82
                    EARTH BRAID ANTENNA Genuine Aston Martin - New (to order)
                    EARTH BRAID ANTENNA Genuine Aston Martin - Used In stock
                    # 6
                    MPN: 4G43-14A227-FA
                    HARNESS ASSY, FEDERAL NUMBER PLATE LAMP, COUPE
                    from £5.06
                    from £5.06
                    HRN FED NUM PLT LMP Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 4G43-14A227-DC
                    HARNESS ASSY, BOOT LID, VOLANTE, AM/FM & TMC
                    from £773.26
                    from £773.26
                    HARNESS ASSEMBLY, BOOT LID, VOLANTE, AM/FM & TMC Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 6G43-14A227-DB
                    HARNESS ASSY, BOOT LID, VOLANTE, AM/FM & TMC
                    07MY
                    from £742.66
                    from £742.66
                    HARNESS ASSEMBLY, BOOT LID, VOLANTE, AM/FM & TMC Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 6G43-14A227-BB
                    HARNESS ASSY, BOOT LID, VOLANTE, AM/FM
                    07MY
                    from £995.43
                    from £995.43
                    HARNESS ASSEMBLY, BOOT LID, VOLANTE, AM/FM Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 8G43-14A227-BB
                    HARNESS ASSY, BOOT LID, VOLANTE
                    08MY From (V) A09110
                    from £268.85
                    from £268.85
                    HARNESS ASSEMBLY, BOOT LID, VOLANTE Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 4G43-14405-CC
                    HARNESS ASSY, ROOF, VOLANTE
                    07MY
                    from £260.41
                    from £260.41
                    HARNESS ASSEMBLY, ROOF, VOLANTE Genuine Aston Martin - New (to order)
                    # 9
                    MPN: 4G43-14A227-GA
                    HARNESS ASSY, NUMBER PLATE, FEDERAL, VOLANTE
                    from £31.40
                    from £31.40
                    HRN FED NUM PLT LMP Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 4G43-14A227-FA
                    HARNESS ASSY, NUMBER PLATE, FEDERAL, VOLANTE
                    from £5.06
                    from £5.06
                    HRN FED NUM PLT LMP Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 4G43-14405-BF
                    HARNESS ASSY, BOOT, VOLANTE
                    Up to (V)
                    from £2,485.40
                    from £2,485.40
                    HARNESS ASSEMBLY, BOOT, VOLANTE Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 6G43-14405-BA
                    HARNESS ASSY, BOOT, VOLANTE
                    From (V)(6.5MY)
                    from £673.84
                    from £673.84
                    HARNESS ASSEMBLY, BOOT, VOLANTE Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 7G43-14405-BC
                    HARNESS ASSY, BOOT, VOLANTE
                    07MY
                    from £2,016.22
                    from £2,016.22
                    HARNESS ASSEMBLY, BOOT, VOLANTE Genuine Aston Martin - New (to order)
                    # 12
                    MPN: 4G43-14A280-FC
                    HARNESS ASSY, EARTH BRAID ANTENNA MODUAL, VOLANTE
                    from £13.82
                    from £13.82
                    EARTH BRAID ANTENNA Genuine Aston Martin - New (to order)
                    EARTH BRAID ANTENNA Genuine Aston Martin - Used In stock
                    # 13
                    MPN: 4G43-37-10659
                    RELAY, MULTIPLUG, TONNEAU LID LOCK, VOLANTE
                    from £2.61
                    from £2.61
                    RELAY 20A MICRO Genuine Aston Martin - New (to order)
                    # -
                    MPN: 6G33-9137-LA
                    HARNESS, TMC LINK
                    08MY From (V) A09110
                    from £54.14
                    from £54.14
                    HARNESS, TMC LINK Genuine Aston Martin - New (to order)
