aston martin db9 (2006) engine harness parts diagram

180101-D3 - ENGINE HARNESS

Aston Martin DB9 (2006) Engine Harness Parts Diagram

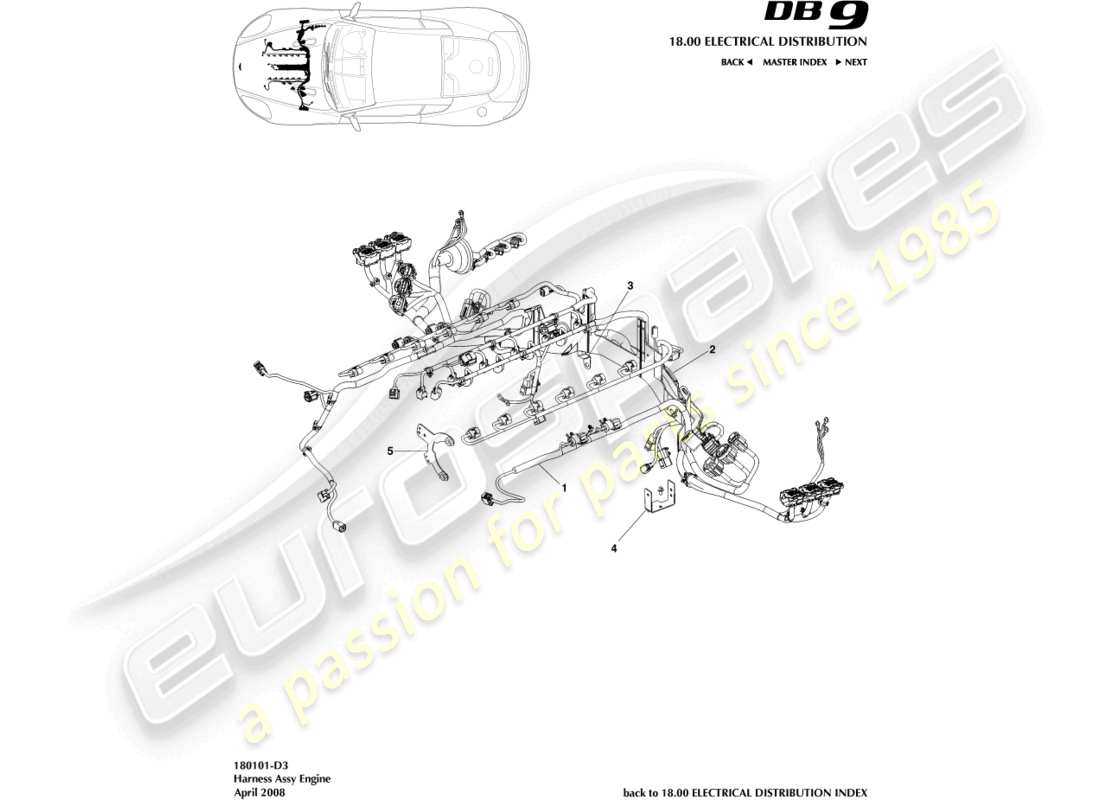

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: 4G43-12B637-AE
        HARNESS ENGINE WIRING
        2 pin ignition coils
        HARNESS ENGINE WIRING Genuine Aston Martin - New (to order)
        # 1
        MPN: 4G43-12B637-BA
        HARNESS ENGINE WIRING
        3 pin ignition coils
        from £5,644.70
        from £5,644.70
        HARNESS ENGINE WIRING Genuine Aston Martin - New (to order)
        # 1
        MPN: 7G43-12B637-AC
        HARNESS ASSY, ENGINE V12
        07MY/08MY
        HARNESS ASSEMBLY, ENGINE V12 Genuine Aston Martin - New (to order)
        # 1
        MPN: 8G43-12B637-CB
        HARNESS ASSY, ENGINE V12
        09MY
        from £4,904.08
        from £4,904.08
        HARNESS ASSEMBLY, ENGINE V12 Genuine Aston Martin - New (to order)
        # 1
        MPN: BG43-12B637-AA
        HARNESS ASSY, ENGINE V12
        11MY
        from £5,275.62
        from £5,275.62
        HARNESS ASSEMBLY, ENGINE V12 Genuine Aston Martin - New (to order)
        # 2
        MPN: 4G43-14W163-EA
        BRACKET, WIRE HARNESS MOUNTING, LH
        from £25.10
        from £25.10
        BRACKET, WIRE HARNESS MOUNTING, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: 4G43-14W163-DA
        BRACKET, WIRE HARNESS MOUNTING, RH
        from £25.10
        from £25.10
        BRACKET, WIRE HARNESS MOUNTING, RH Genuine Aston Martin - New (to order)
        # 4
        MPN: 4G43-6147X-AD
        BRACKET ASSY
        from £23.64
        from £23.64
        BRKT-A/C /ELEC Genuine Aston Martin - New (to order)
        # 5
        MPN: 4G43-14A004-GE
        BRACKET, CMS SENSOR A BANK, RH
        from £13.47
        from £13.47
        BRKT-CMS SENSOR BNKA Genuine Aston Martin - New (to order)
        # 5
        MPN: 4G43-14A280-DD
        EARTH STRAP, BONNET
        from £12.15
        from £12.15
        EARTH STRAP, BONNET Genuine Aston Martin - New (to order)
        # 5
        MPN: 6G43-14A280-AA
        EARTH STRAP, ENGINE
        from £14.99
        from £14.99
        ENGINE EARTH STRAP Genuine Aston Martin - New (to order)
        ENGINE EARTH STRAP Genuine Aston Martin - Used In stock
        # 5
        MPN: 701170
        NUT, FLG, M6
        NUT, FLG, M6, REGULATOR TO BODY Genuine Aston Martin - New (to order)
        # 5
        MPN: 697596
        NUT AND WASHER ASSY
        NUT/WASHER, M6, NEG CABLE TO GROUND Genuine Aston Martin - New (to order)
        # 5
        MPN: 700124
        NUT, M8
        NUT, M8 Genuine Aston Martin - New (to order)
        # 5
        MPN: 700132
        SCREW, M6 X 12
        BOLT, FLG, M6 X 10, MODULE TO BRACKET Genuine Aston Martin - New (to order)
        # 5
        MPN: 702848
        NUT, FLG, M5
        09MY
        from £0.47
        from £0.47
        NUT, FLG, M5 Genuine Aston Martin - New (to order)
