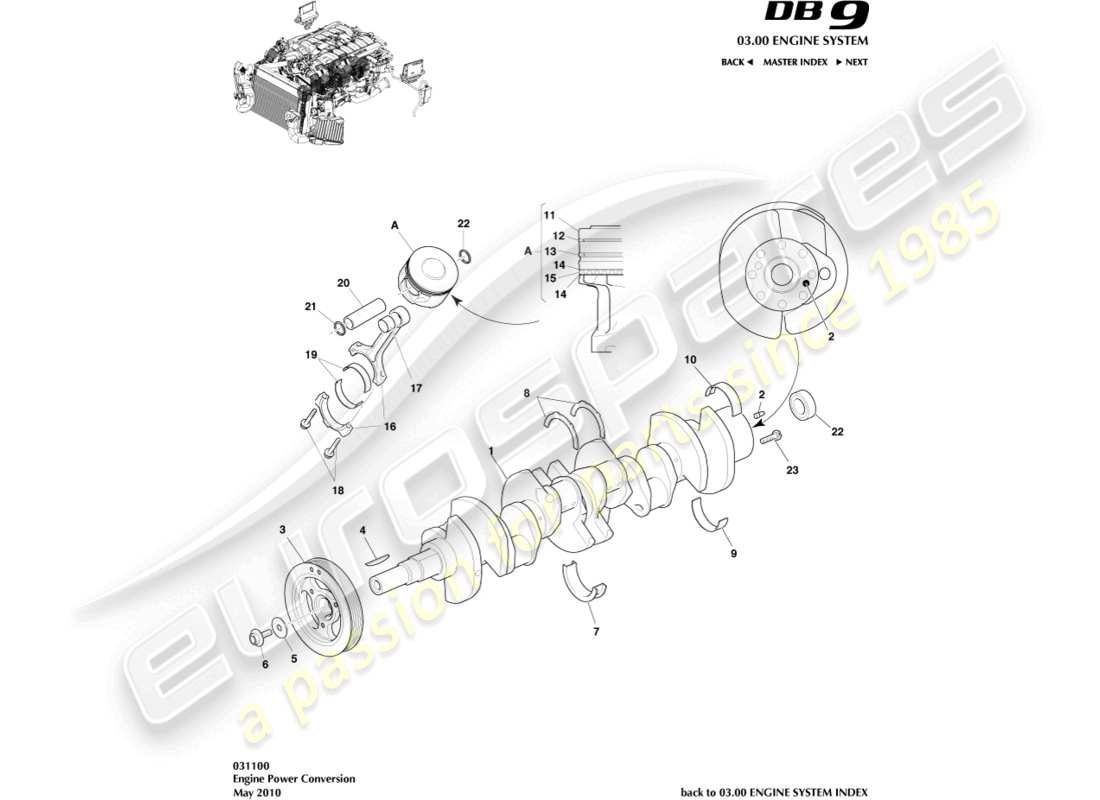

031100 - Power Conversion

Aston Martin DB9 (2006) Power Conversion Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: 4G43-02-10229
                                            CRANKSHAFT ASSY, (INCLUDES DOWEL, ITEM 2)
                                            from £4,140.25
                                            from £4,140.25
                                            CRANKSHAFT ASSEMBLY, (INCLUDES DOWEL, ITEM 2) Genuine Aston Martin - New (to order)
                                            # 2
                                            MPN: 1R12-41-10177
                                            DOWEL
                                            from £6.51
                                            from £6.51
                                            DOWEL PIN Genuine Aston Martin - New (to order)
                                            # 3
                                            MPN: 4G43-02-10939
                                            PULLEY ASSY, CRANKSHAFT DAMPER
                                            from £985.63
                                            from £985.63
                                            PULLEY ASSEMBLY, CRANKSHAFT DAMPER Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: 02-85008
                                            KEY, CRANKSHAFT, 4.76X53.5
                                            from £18.20
                                            from £18.20
                                            KEY, CRANKSHAFT, 4.76X53.5 Genuine Aston Martin - New (to order)
                                            # 5
                                            MPN: 4G43-02-10821
                                            WASHER, CRANKSHAFT DAMPER
                                            from £9.63
                                            from £9.63
                                            WSHR-13.5X39.5X7.35 Genuine Aston Martin - New (to order)
                                            # 6
                                            MPN: 4G43-02-10822
                                            BOLT, M12X48
                                            from £9.30
                                            from £9.30
                                            BOLT, M12X48 Genuine Aston Martin - New (to order)
                                            # 7
                                            MPN: 02-85022
                                            WASHER, THRUST, CRANKSHAFT, LOWER
                                            WASHER, THRUST, CRANKSHAFT, LOWER Genuine Aston Martin - New (to order)
                                            # 8
                                            MPN: 4W7E-6A341-AB
                                            WASHER, THRUST, CRANKSHAFT, UPPER
                                            WASHER, THRUST, CRANKSHAFT, UPPER Genuine Aston Martin - New (to order)
                                            # 8
                                            MPN: 4W7E-6A341-AA
                                            WASHER, THRUST, CRANKSHAFT, UPPER
                                            08MY
                                            WASHER, THRUST, CRANKSHAFT, UPPER Genuine Aston Martin - New (to order)
                                            # 9
                                            MPN: 4R3E-6A338-AA
                                            BEARING, CRANKSHAFT, MAIN, LOWER
                                            Supersession
                                            Supersession
                                            Genuine Aston Martin (no longer available to order)
                                            # 9
                                            MPN: 4R3E-6A338-BA
                                            BEARING, CRANKSHAFT, MAIN, LOWER (.012)
                                            from £11.81
                                            from £11.81
                                            BRG-CRK MN LWR(.012) Genuine Aston Martin - New (to order)
                                            # 9
                                            MPN: 4R3E-6A338-CA
                                            BEARING, CRANKSHAFT, MAIN, LOWER (.014)
                                            from £16.97
                                            from £16.97
                                            BRG-CRK MN LWR(.014) Genuine Aston Martin - New (to order)
                                            # 10
                                            MPN: 4R3E-6333-AA
                                            BEARING, CRANKSHAFT, MAIN, UPPER GRADE 1
                                            from £7.04
                                            from £7.04
                                            BEARING-CRANK MN UPR Genuine Aston Martin - New (to order)
                                            # 10
                                            MPN: 4R3E-6333-BA
                                            BEARING, CRANKSHAFT, MAIN, UPPER GRADE 2
                                            from £9.97
                                            from £9.97
                                            BEARING-CRANK MN UPR Genuine Aston Martin - New (to order)
                                            # 10
                                            MPN: 4R3E-6333-CA
                                            BEARING, CRANKSHAFT, MAIN, UPPER GRADE 3
                                            from £16.97
                                            from £16.97
                                            BEARING-CRANK MN UPR Genuine Aston Martin - New (to order)
                                            # 11
                                            MPN: 8D33-02-10018
                                            PISTON, GRADE 1
                                            from £223.53
                                            from £223.53
                                            PISTON, GRADE 1 Genuine Aston Martin - New (to order)
                                            # 11
                                            MPN: 8D33-02-10019
                                            PISTON, GRADE 2
                                            from £627.68
                                            from £627.68
                                            PISTON, GRADE 2 Genuine Aston Martin - New (to order)
                                            # 11
                                            MPN: 8D33-02-10021
                                            PISTON, GRADE 3
                                            from £223.53
                                            from £223.53
                                            PISTON, GRADE 3 Genuine Aston Martin - New (to order)
                                            # 12
                                            MPN: 1R12-02-10060
                                            RING, PISTON COMPRESSION, UPPER
                                            from £25.56
                                            from £25.56
                                            P/RING-COMPR UPPER Genuine Aston Martin - New (to order)
                                            # 13
                                            MPN: 02-85013
                                            RING, PISTON COMPRESSION, LOWER
                                            from £12.72
                                            from £12.72
                                            P/RING-COMPR.LOWER Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: 02-85014
                                            SEGMENT, PISTON RING, OIL CONTROL
                                            from £7.11
                                            from £7.11
                                            SEGMENT, PISTON RING, OIL CONTROL Genuine Aston Martin - New (to order)
                                            # 15
                                            MPN: 02-85015
                                            SPACER, PISTON RING OIL CONTROL
                                            from £6.51
                                            from £6.51
                                            SPACER-OIL CONTROL Genuine Aston Martin - New (to order)
                                            # -
                                            MPN: 1R12-02-10162
                                            CONNECTING ROD ASSEMBLY
                                            07MY
                                            CONNECTING ROD ASSEMBLY Genuine Aston Martin - New (to order)
                                            # -
                                            MPN: XS2E-6200-CA
                                            CONNECTING ROD ASSEMBLY
                                            08MY
                                            CONNECTING ROD ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 16
                                            MPN: 9G43-02-11092
                                            CONNECTING ROD ASSY
                                            Supersession
                                            Supersession
                                            Genuine Aston Martin (no longer available to order)
                                            # -
                                            MPN: 4G43-02-10473
                                            BUSHING, CONNECTING ROD
                                            07MY
                                            BUSHING, CONNECTING ROD Genuine Aston Martin - New (to order)
                                            # -
                                            MPN: F43E-6207-BC
                                            BUSHING, CONNECTING ROD
                                            08MY
                                            BUSHING, CONNECTING ROD Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: 4G43-02-10968
                                            BUSHING, PISTON PIN
                                            from £3.31
                                            from £3.31
                                            BUSHING, PISTON PIN Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: 02-85018
                                            BOLT, CONNECTING ROD
                                            from £11.18
                                            from £11.18
                                            BOLT, CONNECTING ROD Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: 6E5E-6211-AB
                                            BEARING, CONNECTING ROD
                                            from £15.16
                                            from £15.16
                                            BEARING, CONNECTING ROD Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: 6E5E-6211-BB
                                            BEARING, CONNECTING ROD, 0.25
                                            0.25mm undersized
                                            from £12.61
                                            from £12.61
                                            BEARING, CONNECTING ROD, 0.25 Genuine Aston Martin - New (to order)
                                            # 20
                                            MPN: 4G43-02-10955-PK
                                            PIN, PISTON
                                            PIN, PISTON Genuine Aston Martin - New (to order)
                                            # 21
                                            MPN: 1R12-02-10448
                                            RETAINER, PISTON PIN
                                            from £1.68
                                            from £1.68
                                            RETAINER, PISTON PIN Genuine Aston Martin - New (to order)
                                            # 22
                                            MPN: 1R12-02-10061
                                            BEARING, PILOT
                                            from £20.13
                                            from £20.13
                                            BEARING, PILOT Genuine Aston Martin - New In stock
                                            # 23
                                            MPN: 697786-PK
                                            BOLT, M10X30
                                            from £7.93
                                            from £7.93
                                            BOLT-M10X1X30 (5) Genuine Aston Martin - New (to order)
