aston martin db9 (2006) bodyside & quarter trim, volante parts diagram

010805-B2 - Bodyside & Quarter Trim, Volante

Aston Martin DB9 (2006) Bodyside & Quarter Trim, Volante Parts Diagram

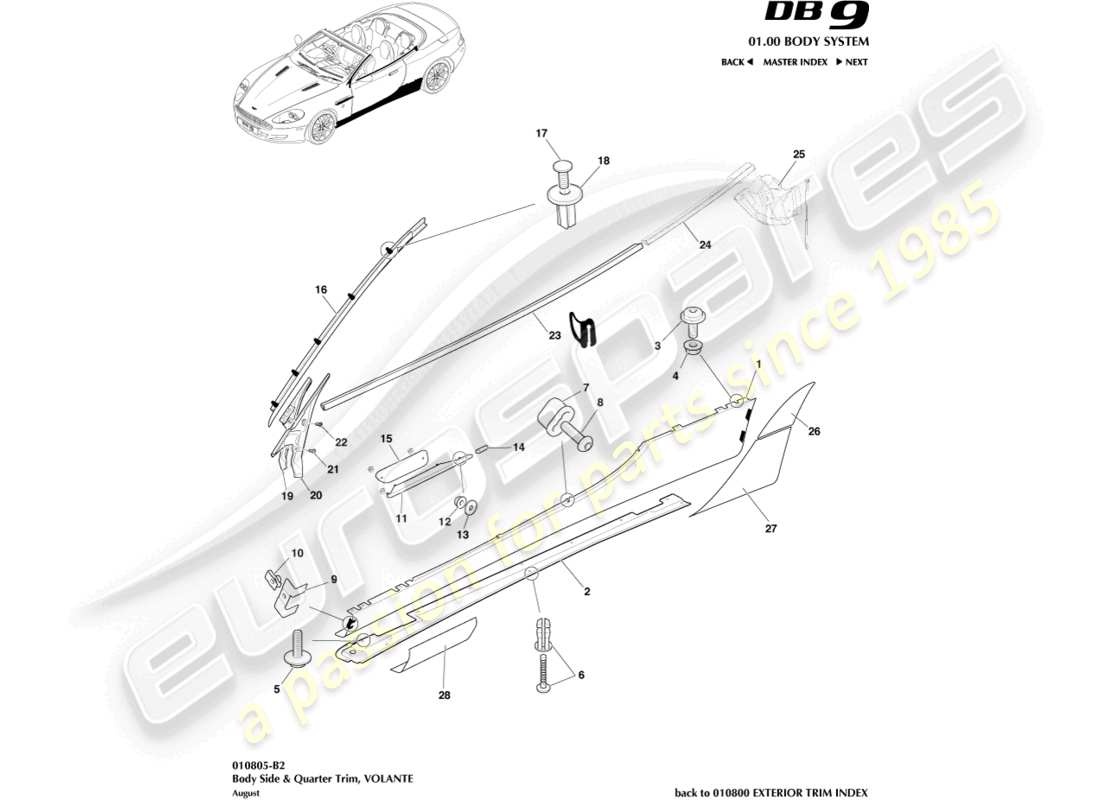

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 6G43-10608-AB
                                  SILL APPLIQUE ASSY, RH
                                  from £191.41
                                  from £191.41
                                  SILL EXTENSION ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                  SILL EXTENSION ASSEMBLY, RH Genuine Aston Martin - Used In stock
                                  # 1
                                  MPN: 6G43-10609-AB
                                  SILL APPLIQUE ASSY, LH
                                  from £191.41
                                  from £191.41
                                  SILL EXTENSION ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                  SILL EXTENSION ASSEMBLY, LH Genuine Aston Martin - Used In stock
                                  # 1
                                  MPN: AG43-10608-AA
                                  SILL APPLIQUE ASSY, RH
                                  11MY
                                  from £354.95
                                  from £354.95
                                  SILL EXTENSION ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                  # 1
                                  MPN: AG43-10609-AA
                                  SILL APPLIQUE ASSY, LH
                                  11MY
                                  from £354.95
                                  from £354.95
                                  SILL EXTENSION ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                  # -
                                  -
                                  SPACER, SILL
                                  # 3
                                  MPN: 703156
                                  SCREW/WASHER, M6X18, SILL TO FENDER
                                  from £0.47
                                  from £0.47
                                  SCREW/WASHER M6X18 Genuine Aston Martin - New In stock
                                  # 4
                                  MPN: 702944
                                  NUT, M6, SILL TO FENDER
                                  from £0.58
                                  from £0.58
                                  NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                                  LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                                  # 5
                                  MPN: 701567
                                  SCREW/WASHER, M6 X 18, REINFORCEMENT TO SILL
                                  from £1.19
                                  from £1.19
                                  SCREW M6X16 Genuine Aston Martin - New (to order)
                                  # 6
                                  MPN: 701582-PK
                                  RIVET, REINFORCEMENT TO SILL
                                  Pack of 10
                                  from £2.81
                                  from £2.81
                                  RIVET, REINFORCEMENT TO SILL Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: 4G43-48954-AA
                                  PLASTIC SILL PLATE LOCKNUT
                                  from £0.47
                                  from £0.47
                                  SILL ANTI STRIP LOKU Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: 701441-PK
                                  SCREW ST4.2 X 13
                                  Pack of 10
                                  from £1.36
                                  from £1.36
                                  SCREW-M4.2X13 BLK(10 Genuine Aston Martin - New (to order)
                                  # 9
                                  MPN: 8G43-16586-AA
                                  BRACKET, WHEEL ARCH LINER, RH
                                  from £33.71
                                  from £33.71
                                  BRACKET, WHEEL ARCH LINER, RH Genuine Aston Martin - New (to order)
                                  # 9
                                  MPN: 8G43-16587-AA
                                  BRACKET, WHEEL ARCH LINER, LH
                                  from £12.80
                                  from £12.80
                                  BRACKET, WHEEL ARCH LINER, LH Genuine Aston Martin - New (to order)
                                  # 10
                                  MPN: 703740
                                  NUT, M6X1, U TYPE, WHEEL ARCH LINER
                                  from £1.61
                                  from £1.61
                                  NUT-M6X1.0 0.8-0.4 Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: 4G43-280B63-AH
                                  SIDE STRAKE FENDER, LH
                                  11MY
                                  from £125.50
                                  from £125.50
                                  SIDE STRAKE FENDER, LH Genuine Aston Martin - New (to order)
                                  SIDE STRAKE FENDER, LH Genuine Aston Martin - Used In stock
                                  # 11
                                  MPN: 4G43-280B62-AH
                                  SIDE STRAKE FENDER, RH
                                  11MY
                                  from £125.50
                                  from £125.50
                                  SIDE STRAKE FENDER, RH Genuine Aston Martin - New (to order)
                                  SIDE STRAKE FENDER, RH Genuine Aston Martin - Used In stock
                                  # 12
                                  MPN: 703163
                                  NUT, M6, SIDE STRAKE TO FENDER/DOOR
                                  from £0.47
                                  from £0.47
                                  NUT M6 FLG LOCKING Genuine Aston Martin - New (to order)
                                  # 13
                                  MPN: 4G43-16C694-AB-PK
                                  WASHER, NYLON
                                  Pack of 10
                                  from £6.06
                                  from £6.06
                                  WASHER-NYLON(PACK 10 Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: 4G43-018K29-AG
                                  SIDE STRAKE DOOR, LH
                                  from £53.02
                                  from £53.02
                                  SIDE STRAKE DOOR, LH Genuine Aston Martin - New (to order)
                                  SIDE STRAKE DOOR, LH Genuine Aston Martin - Used In stock
                                  # 14
                                  MPN: 4G43-018K28-AG
                                  SIDE STRAKE DOOR, RH
                                  from £53.02
                                  from £53.02
                                  SIDE STRAKE DOOR, RH Genuine Aston Martin - New (to order)
                                  SIDE STRAKE DOOR, RH Genuine Aston Martin - Used In stock
                                  # 15
                                  MPN: 4G43-280B84-AD
                                  MESH, SIDE STRAKE, LH
                                  MESH, SIDE STRAKE, LH Genuine Aston Martin - New (to order)
                                  MESH, SIDE STRAKE, LH Genuine Aston Martin - Used In stock
                                  # 15
                                  MPN: 4G43-280B84-BA
                                  MESH, SIDE STRAKE, LH
                                  Magnum Silver
                                  from £109.25
                                  from £109.25
                                  MESH, SIDE STRAKE, LH Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: BG43-280B84-A
                                  MESH, SIDE STRAKE, LH
                                  11MY
                                  MESH, SIDE STRAKE, LH Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: BG43-280B84-BA
                                  MESH, SIDE STRAKE, LH
                                  11MY, Magnum Silver
                                  from £83.75
                                  from £83.75
                                  MESH, SIDE STRAKE, LH Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: 4G43-280B83-AD
                                  MESH, SIDE STRAKE, RH
                                  from £39.54
                                  from £39.54
                                  MESH, SIDE STRAKE, RH Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: 4G43-280B83-BA
                                  MESH, SIDE STRAKE, RH
                                  Magnum Silver
                                  from £109.25
                                  from £109.25
                                  MESH, SIDE STRAKE, RH Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: BG43-280B83-AA
                                  MESH, SIDE STRAKE, RH
                                  11MY
                                  from £65.54
                                  from £65.54
                                  MESH, SIDE STRAKE, RH Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: BG43-280B83-BA
                                  MESH, SIDE STRAKE, RH
                                  11MY, Magnum Silver
                                  from £83.75
                                  from £83.75
                                  MESH, SIDE STRAKE, RH Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: 4G43-519A36-DA
                                  FINISHER, A PILLAR, LH
                                  from £180.88
                                  from £180.88
                                  FINISHER, A PILLAR, LH Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: 4G43-519A37-DA
                                  FINISHER, A PILLAR, RH
                                  from £173.94
                                  from £173.94
                                  FINISHER, A PILLAR, RH Genuine Aston Martin - New (to order)
                                  # 17
                                  MPN: 4G43-51757-AA
                                  SCREW, M4, FINISHER TO CANTRAIL
                                  from £0.47
                                  from £0.47
                                  SCREW M4 SELF TAP Genuine Aston Martin - New (to order)
                                  # 18
                                  MPN: 701656-PK
                                  RETAINER, FINISHER TO CANTRAIL
                                  Pack of 10
                                  from £1.96
                                  from £1.96
                                  RETAINER(PACK OF 10) Genuine Aston Martin - New (to order)
                                  # 19
                                  MPN: 4G43-C02565-AC
                                  RETAINER ASSY, BODY PILLAR, LH
                                  from £26.09
                                  from £26.09
                                  RET ASY FRONT PLR LH Genuine Aston Martin - New (to order)
                                  # 19
                                  MPN: 4G43-C02564-AC
                                  RETAINER ASSY, BODY PILLAR, RH
                                  from £32.57
                                  from £32.57
                                  RET ASY FRONT PLR RH Genuine Aston Martin - New (to order)
                                  # 20
                                  MPN: 4G43-C02565-BC
                                  COVER, RETAINER ASSY, BODY PILLAR, LH
                                  COVER, RETAINER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                  # 20
                                  MPN: 4G43-C02565-BD
                                  COVER, RETAINER ASSY, BODY PILLAR, LH
                                  06MY on
                                  from £17.54
                                  from £17.54
                                  RET ASY FRONT PLR LH Genuine Aston Martin - New (to order)
                                  # 20
                                  MPN: 4G43-C02564-BD
                                  COVER, RETAINER ASSY, BODY PILLAR, RH
                                  from £17.54
                                  from £17.54
                                  RET ASY FRONT PLR RH Genuine Aston Martin - New (to order)
                                  # 21
                                  MPN: 702217
                                  SCREW M5X12, BUTTON HEAD
                                  from £0.47
                                  from £0.47
                                  SCREW M5X16 BTTN HD Genuine Aston Martin - New (to order)
                                  # 22
                                  MPN: 700235
                                  SCREW, M4X9.5, SMALL WASHER HEAD
                                  from £2.59
                                  from £2.59
                                  SCREW, M4X9.5, SMALL WASHER HEAD Genuine Aston Martin - New (to order)
                                  # 23
                                  MPN: 4G43-F20563-BA
                                  WAISTSEAL, DOOR OUTER, LH
                                  from £83.09
                                  from £83.09
                                  WEATHERSTRIP, FRONT DOOR OUTER, LH Genuine Aston Martin - New (to order)
                                  WEATHERSTRIP, FRONT DOOR OUTER, LH Genuine Aston Martin - Used In stock
                                  # 23
                                  MPN: 4G43-F20562-AE
                                  WAISTSEAL, DOOR OUTER, RH
                                  WAISTSEAL, DOOR OUTER, RH Genuine Aston Martin - New (to order)
                                  # 23
                                  MPN: 4G43-F20562-BA
                                  WAISTSEAL, DOOR OUTER, RH
                                  07MY on
                                  from £83.09
                                  from £83.09
                                  WEATHERSTRIP, FRONT DOOR OUTER, RH Genuine Aston Martin - New (to order)
                                  WEATHERSTRIP, FRONT DOOR OUTER, RH Genuine Aston Martin - Used In stock
                                  # 24
                                  MPN: 9G43-1228495-CA
                                  WAISTSEAL, QUARTER GLASS, LH
                                  from £139.18
                                  from £139.18
                                  REAR QTR GLASS WAIST Genuine Aston Martin - New (to order)
                                  # 24
                                  MPN: 9G43-1228494-CA
                                  WAISTSEAL, QUARTER GLASS, RH
                                  from £137.22
                                  from £137.22
                                  REAR QTR GLASS WAIST Genuine Aston Martin - New (to order)
                                  # 25
                                  MPN: 4G43-A410K25-BD
                                  BRACKET, CLOSING PANEL, LH
                                  from £22.79
                                  from £22.79
                                  BRACKET, PANEL C POSTLAND, LH Genuine Aston Martin - New (to order)
                                  # 25
                                  MPN: 4G43-A410K24-BD
                                  BRACKET, CLOSING PANEL, RH
                                  from £22.79
                                  from £22.79
                                  BRACKET, PANEL C POSTLAND, RH Genuine Aston Martin - New (to order)
                                  # -
                                  -
                                  KIT, PAINT PROTECTION
                                  # -
                                  -
                                  INSTRUCTIONS
                                  # 26
                                  MPN: 4G43-10631-AB
                                  TAPE, REAR QUARTER, LH
                                  Up to 08MY
                                  TAPE, REAR QUARTER, LH Genuine Aston Martin - New (to order)
                                  # 26
                                  MPN: 8D33-10631-AB
                                  TAPE, REAR QUARTER, LH
                                  FROM 08MY
                                  from £20.63
                                  from £20.63
                                  TAPE, REAR QUARTER, LH Genuine Aston Martin - New (to order)
                                  # 26
                                  MPN: 4G43-10630-AB
                                  TAPE, REAR QUARTER, RH
                                  Up to 08MY
                                  TAPE, REAR QUARTER, RH Genuine Aston Martin - New (to order)
                                  # 26
                                  MPN: 8D33-10630-AB
                                  TAPE, REAR QUARTER, RH
                                  FROM 08MY
                                  from £20.03
                                  from £20.03
                                  TAPE, REAR QUARTER, RH Genuine Aston Martin - New (to order)
                                  # 27
                                  MPN: 4G43-10625-AB
                                  TAPE, REAR SILL, LH
                                  from £58.15
                                  from £58.15
                                  TAPE, REAR SILL, LH Genuine Aston Martin - New (to order)
                                  # 27
                                  MPN: 4G43-10624-AB
                                  TAPE, REAR SILL, RH
                                  from £56.45
                                  from £56.45
                                  TAPE, REAR SILL, RH Genuine Aston Martin - New (to order)
                                  # 28
                                  MPN: 4G43-10627-AA
                                  TAPE, FRONT SILL, LH
                                  Up to 09MY
                                  from £36.91
                                  from £36.91
                                  TAPE, FRONT SILL, LH Genuine Aston Martin - New (to order)
                                  # 28
                                  MPN: 8G43-10627-AA
                                  TAPE, FRONT SILL, LH
                                  FROM 09MY
                                  TAPE, FRONT SILL, LH Genuine Aston Martin - New (to order)
                                  # 28
                                  MPN: 4G43-10626-AA
                                  TAPE, FRONT SILL, RH
                                  Up to 09MY
                                  from £36.91
                                  from £36.91
                                  TAPE, FRONT SILL, RH Genuine Aston Martin - New (to order)
                                  # 28
                                  MPN: 8G43-10626-AB
                                  TAPE, FRONT SILL, RH
                                  FROM 09MY
                                  from £33.65
                                  from £33.65
                                  TAPE, FRONT SILL, RH Genuine Aston Martin - New (to order)
                                  # -
                                  -
                                  TAPE, FRONT BUMPER, LOWER
