010204-B1 - Front Wheel Arches

Aston Martin DB9 (2006) Front Wheel Arches Parts Diagram

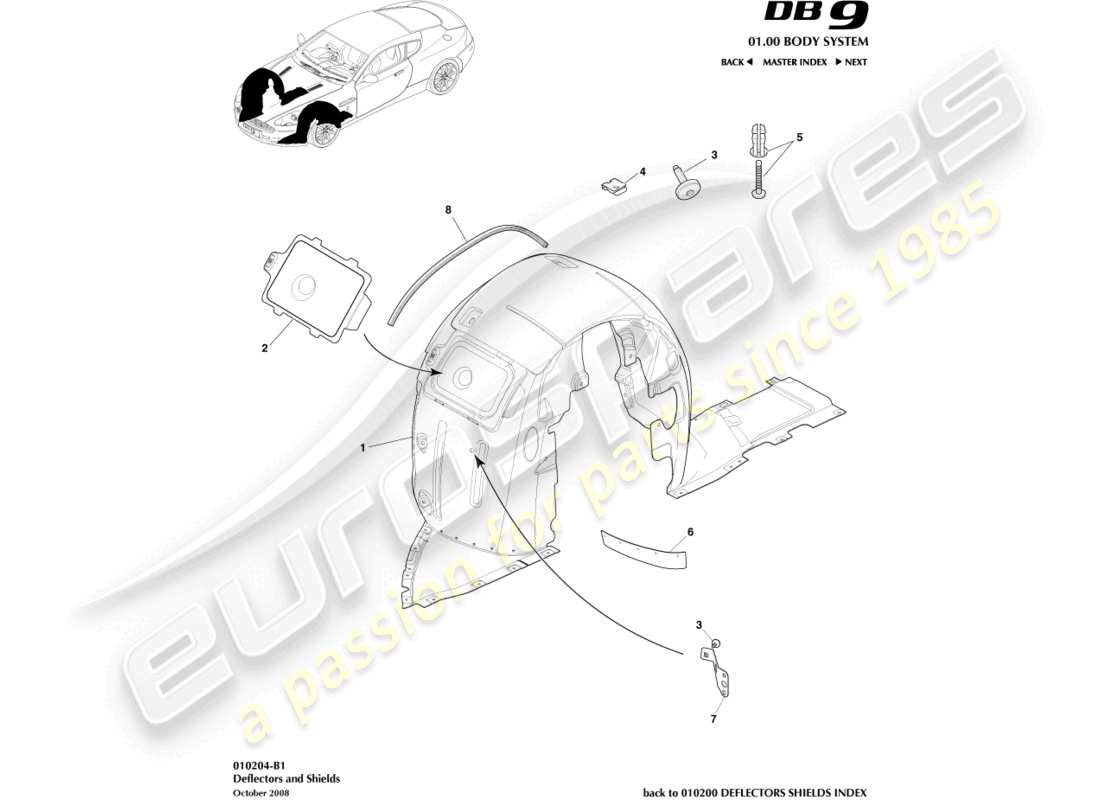

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 9G43-166562-AC
            LINER, FRONT WHEELARCH, RH
            Coupe & Pre 09MY Volante
            from £372.21
            from £372.21
            LINER, FRONT WHEELARCH, RH Genuine Aston Martin - New (to order)
            # 1
            MPN: 9G43-L166562-AF
            LINER, FRONT WHEELARCH, RH
            From 09MY Volante
            from £257.25
            from £257.25
            LINER, FRONT WHEELARCH, RH Genuine Aston Martin - New (to order)
            # 1
            MPN: 9G43-166563-AC
            LINER, FRONT WHEELARCH, LH
            Coupe & Pre 09MY Volante
            from £204.72
            from £204.72
            LINER, FRONT WHEELARCH, LH Genuine Aston Martin - New (to order)
            LINER, FRONT WHEELARCH, LH Genuine Aston Martin - Used In stock
            # 1
            MPN: 9G43-L166563-AF
            LINER, FRONT WHEELARCH, LH
            From 09MY Volante
            from £257.25
            from £257.25
            LINER, FRONT WHEELARCH, LH Genuine Aston Martin - New (to order)
            # 2
            MPN: 4G43-16F118-AA
            KIT, ACCESS DOOR, RH, FRONT W/A LINER
            from £20.34
            from £20.34
            KIT, ACCESS DOOR, RH, FRONT W/A LINER Genuine Aston Martin - New (to order)
            KIT, ACCESS DOOR, RH, FRONT W/A LINER Genuine Aston Martin - Used In stock
            # 2
            MPN: 4G43-16F119-AA
            KIT, ACCESS DOOR, LH, FRONT W/A LINER
            from £20.34
            from £20.34
            KIT, ACCESS DOOR, LH, FRONT W/A LINER Genuine Aston Martin - New (to order)
            KIT, ACCESS DOOR, LH, FRONT W/A LINER Genuine Aston Martin - Used In stock
            # 3
            MPN: 6G33-FA0115-AB-PK
            SCREW/WASHER, M6X18, ARCH TO UNDERBODY
            27 per liner. Pack of 20
            from £7.26
            from £7.26
            SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
            FRONT UNDERTRAY SCREW (6G33-FA0115-AB-PK) Genuine Ferrari Part - New (to order)
            # 4
            MPN: 7G43-10609E-AA-PK
            CLIP, SPRING, M6, U TYPE, ARCH TO UNDERBODY
            19 per liner. Pack of 10
            from £5.08
            from £5.08
            CLIP SPG M6 PK OF 10 Genuine Aston Martin - New In stock
            FRONT UNDERTRAY CLIP (7G43-10609E-AA-PK) Genuine Ferrari Part - New (to order)
            # 5
            MPN: 4G43-78-10814
            SCRIVET
            from £0.47
            from £0.47
            SCRIVET Genuine Aston Martin - New (to order)
            # 6
            MPN: 4G43-78-11289
            KIT, AIR DEFLECTOR, RH, FRONT W/A LINER
            from £23.14
            from £23.14
            KIT, AIR DEFLECTOR, RH, FRONT W/A LINER Genuine Aston Martin - New (to order)
            # 6
            MPN: 4G43-78-11289
            KIT, AIR DEFLECTOR, LH, FRONT W/A LINER
            from £23.14
            from £23.14
            KIT, AIR DEFLECTOR, RH, FRONT W/A LINER Genuine Aston Martin - New (to order)
            # 7
            MPN: 8G43-16586-AA
            BRACKET, FRONT WHEEL SHIELD, RH
            from £34.27
            from £34.27
            BRACKET, WHEEL ARCH LINER, RH Genuine Aston Martin - New (to order)
            # 7
            MPN: 8G43-16587-AA
            BRACKET, FRONT WHEEL SHIELD, LH
            from £13.02
            from £13.02
            BRACKET, WHEEL ARCH LINER, LH Genuine Aston Martin - New (to order)
            # 8
            MPN: 4G43-DX88N-AA
            EDGE PROTECTION, WHEEL ARCH LINER
            from £10.92
            from £10.92
            EDGE PROTECTION, WHEEL ARCH LINER Genuine Aston Martin - New (to order)
